Door op de knop hiernaast te klikken, wordt de catalogus schuren gedownload.
Door op de knop hiernaast te klikken wordt een formulier geopend om de prijslijst voor schuurmaterialen aan te vragen.

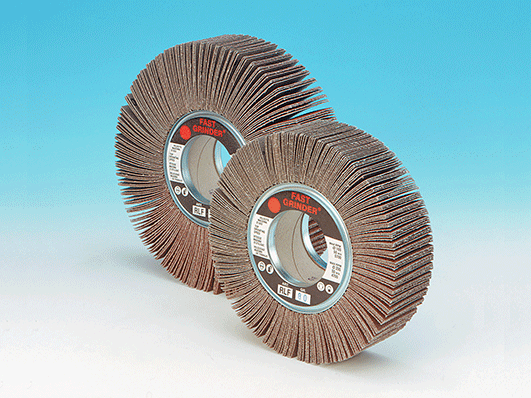

Assortiment lamellen schuurwielen:
Schuurlamellen wielen kunnen worden ingezet op draagbare of stationaire machines. De wielen zijn geschikt voor het schuren, finishen en reinigen van vlakken, profielen of buizen.
Alleen gebruiken met reduceerflenzen type FRL
| korrel | Ø100x30 | Ø165x25 | Ø165x30 | Ø165x50 | Ø200x30 | Ø200x50 |
|---|---|---|---|---|---|---|
| G=25 [mm] | G=25[mm] | G=54 [mm] | G=25/54 [mm] | G=54 [mm] | G=54 [mm] | |
| 400 | - | RLF1652525/400 | RLF1653054/400 | RLF1655054/400 | - | RLF2005054/400 |
| 320 | - | RLF1652525/320 | RLF1653054/320 | RLF1655054/320 | - | RLF2005054/320 |
| 240 | - | RLF1652525/240 | RLF1653054/240 | RLF1655054/240 | RLF2003054/240 | RLF2005054/240 |
| 220 | - | RLF1652525/220 | RLF1653054/220 | RLF1655054/220 | - | RLF2005054/220 |
| 180 | - | RLF1652525/180 | RLF1653054/180 | RLF1655054/180 | RLF2003054/180 | RLF2005054/180 |
| 150 | - | RLF1652525/150 | RLF1653054/150 | RLF1655054/150 | - | RLF2005054/150 |
| 120 | RLF1003025/120 | RLF1652525/120 | RLF1653054/120 | RLF1655054/120 | RLF2003054/120 | RLF2005054/120 |
| 100 | - | - | RLF1653054/100 | RLF1655054/100 | RLF2003054/100 | RLF2005054/100 |
| 80 | RLF1003025/80 | RLF1652525/80 | RLF1653054/80 | RLF1655054/80 | RLF2003054/80 | RLF2005054/80 |
| 60 | RLF1003025/60 | RLF1652525/60 | RLF1653054/60 | RLF1655054/60 | RLF2003054/60 | RLF2005054/60 |
| 50 | - | RLF1652525/50 | - | RLF1655054/50 | - | - |
| 40 | RLF1003025/40 | RLF1652525/40 | RLF1653054/40 | RLF1655054/40 | RLF2003054/40 | RLF2005054/40 |
| v.p.e. | 5 | 5 | 5 | 3 | 3 | 3 |
| max rpm | 6800 | 5200 | 5200 | 5200 | 3800 | 3800 |
| korrel | Ø250x30 | Ø250x50 | Ø300x50 |
|---|---|---|---|
| G=100 [mm] | G=100 [mm] | G=100 [mm] | |
| 400 | - | RLF25050100/400 | - |
| 320 | - | RLF25050100/320 | - |
| 240 | RLF25030100/240 | RLF25050100/240 | RLF30050100/240 |
| 220 | - | RLF25050100/220 | RLF30050100/220 |
| 180 | - | RLF25050100/180 | RLF30050100/180 |
| 150 | - | RLF25050100/150 | - |
| 120 | RLF25030100/120 | RLF25050100/120 | RLF30050100/120 |
| 100 | - | RLF25050100/100 | - |
| 80 | RLF25030100/80 | RLF25050100/80 | RLF30050100/80 |
| 60 | RLF25030100/60 | RLF25050100/60 | RLF30050100/60 |
| 50 | - | - | - |
| 40 | RLF25030100/40 | RLF25050100/40 | RLF30050100/40 |
| v.p.e. | 3 | 3 | 1 |
| max rpm | 3000 | 3000 | 2800 |

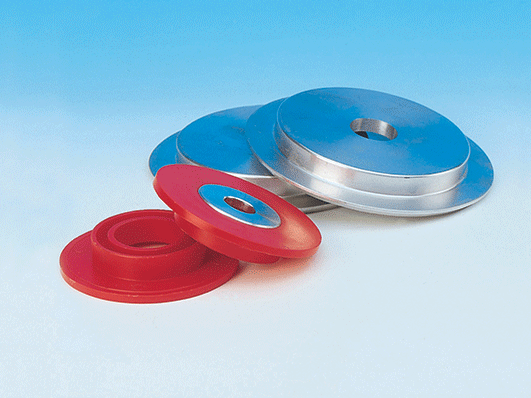

| Art.nr | Omschrijving |
|---|---|
| FRL5430 | kunststof flens (2x)54-30mm |
| FRL5425 | kunststofflens (2x) 54-25mm |
| FRL5420 | kunststofflens (2x) 54-20mm |
| FRL5416 | kunststofflens (2x) 54-16mm |
| FRL10025 | aluminium flens (2x) 100-25mm |
| FRL10020 | aluminium flens (2x) 100-25mm |

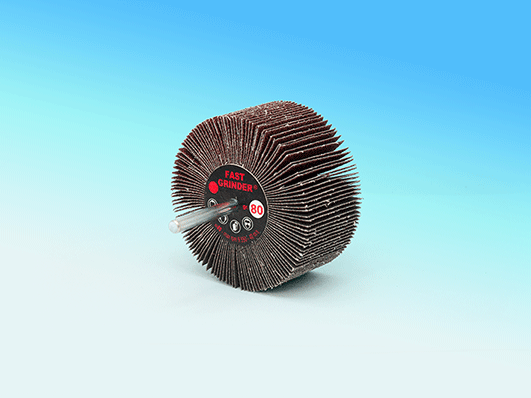

De lamellenschuurwielen of schuurmoppen, worden hoofdzakelijk ingezet voor het schuren en afwerken van kleine oppervlakken of al dan niet moeilijk toegankelijke oppervlakken. Te gebruiken op materialen als staal, roestvast staal en non ferro metalen.
De spanstift mag niet meer dan 5mm uit het inspangereedschap steken.
| Ø | H | s | korrelgrofte | max rpm |
vpe | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| [mm] | 40 | 60 | 80 | 120 | 180 | 240 | 320 | ||||
| 20 | 10 | 6 | - | RLG20106/60 | RLG20106/80 | RLG20106/120 | RLG20106/180 | RLG20106/240 | - | 26000 | 25 |
| 20 | 15 | 6 | RLG20156/40 | RLG20156/60 | RLG20156/80 | RLG20156/120 | RLG20156/180 | RLG20156/240 | RLG20156/320 | 26000 | 25 |
| 20 | 20 | 6 | RLG20206/40 | RLG20206/60 | RLG20206/80 | RLG20206/120 | RLG20206/180 | RLG20156/180 | - | 26000 | 25 |
| 20 | 25 | 6 | - | RLG20256/60 | RLG20256/80 | RLG20256/120 | - | - | - | 26000 | 25 |
| 25 | 10 | 6 | - | RLG25106/60 | RLG25106/80 | RLG25106/120 | RLG25106/180 | - | - | 25500 | 25 |
| 25 | 15 | 6 | RLG25156/40 | RLG25156/60 | RLG25156/80 | RLG25156/120 | RLG25156/180 | RLG25156/240 | - | 25500 | 25 |
| 25 | 20 | 6 | - | RLG25206/60 | RLG25206/80 | RLG25206/120 | RLG25206/180 | RLG25206/240 | - | 25500 | 25 |
| 25 | 25 | 6 | RLG25256/40 | RLG25256/60 | RLG25256/80 | RLG25256/120 | - | RLG25256/240 | - | 25500 | 25 |
| 30 | 5 | 6 | - | RLG3056/60 | RLG3056/80 | RLG3056/120 | RLG3056/180 | RLG3056/240 | RLG3056/320 | 25000 | 25 |
| 30 | 10 | 6 | RLG30106/40 | RLG30106/60 | RLG30106/80 | RLG30106/120 | RLG30106/180 | RLG30106/240 | RLG30106/320 | 25000 | 25 |
| 30 | 15 | 6 | RLG30156/40 | RLG30156/60 | RLG30156/80 | RLG30156/120 | RLG30156/180 | RLG30156/240 | - | 25000 | 25 |
| 30 | 20 | 6 | RLG30206/40 | RLG30206/60 | RLG30206/80 | RLG30206/120 | RLG30206/180 | RLG30206/240 | RLG30206/320 | 25000 | 25 |
| 40 | 10 | 6 | RLG40106/40 | RLG40106/60 | RLG40106/80 | RLG40106/120 | RLG40106/180 | RLG40106/240 | - | 19000 | 25 |
| 40 | 15 | 6 | RLG40156/40 | RLG40156/60 | RLG40156/80 | RLG40156/120 | RLG40156/180 | - | - | 19000 | 25 |
| 40 | 20 | 6 | RLG40206/40 | RLG40206/60 | RLG40206/80 | RLG40206/120 | RLG40206/180 | RLG40206/240 | RLG40206/320 | 19000 | 25 |
| 40 | 30 | 6 | RLG40306/40 | RLG40306/60 | RLG40306/80 | RLG40306/120 | - | RLG40306/240 | - | 19000 | 25 |
| 50 | 5 | 6 | - | RLG5056/60 | RLG5056/80 | RLG5056/120 | - | - | - | 15000 | 25 |
| 50 | 10 | 6 | RLG50106/40 | RLG50106/60 | RLG50106/80 | RLG50106/120 | RLG50106/180 | RLG50106/240 | - | 15000 | 25 |
| 50 | 20 | 6 | RLG50206/40 | RLG40206/60 | RLG50206/80 | RLG50206/120 | - | - | - | 15000 | 25 |
| 50 | 30 | 6 | RLG50306/40 | RLG50306/60 | RLG50306/80 | RLG50306/120 | RLG50306/180 | RLG50306/240 | RLG50306/320 | 15000 | 25 |
| 60 | 5 | 6 | - | RLG6056/60 | RLG6056/80 | RLG6056/120 | - | - | - | 12700 | 25 |
| 60 | 10 | 6 | RLG60106/40 | RLG60106/60 | RLG60106/80 | RLG60106/120 | - | - | - | 12700 | 25 |
| 60 | 15 | 6 | RLG60156/40 | RLG60156/60 | RLG60156/80 | RLG60156/120 | - | - | - | 12700 | 25 |
| 60 | 20 | 6 | RLG60206/40 | RLG60206/60 | RLG60206/80 | RLG60206/120 | - | - | - | 12700 | 25 |
| 60 | 30 | 6 | RLG60306/40 | RLG60306/60 | RLG60306/80 | RLG60306/120 | RLG60306/180 | RLG60306/240 | RLG60306/320 | 12700 | 25 |
| 60 | 40 | 6 | RLG60406/40 | RLG60406/60 | RLG60406/80 | RLG60406/120 | - | - | - | 12700 | 25 |
| 80 | 5 | 6 | - | RLG8056/60 | RLG8056/80 | RLG8056/120 | RLG8056/180 | - | - | 8500 | 10 |
| 80 | 10 | 6 | - | RLG80106/60 | RLG80106/80 | RLG80106/120 | - | - | - | 8500 | 10 |
| 80 | 20 | 6 | RLG80206/40 | RLG80206/60 | RLG80206/80 | RLG80206/120 | - | - | - | 8500 | 10 |
| 80 | 30 | 6 | RLG80306/40 | RLG80306/60 | RLG80306/80 | RLG80306/120 | - | RLG80306/240 | - | 8500 | 10 |
| 80 | 40 | 6 | RLG80406/40 | RLG80406/60 | RLG80406/80 | RLG80406/120 | - | RLG80406/240 | - | 8500 | 10 |
| 80 | 50 | 6 | RLG80506/40 | RLG80506/60 | RLG80506/80 | RLG80506/120 | - | RLG80506/240 | RLG80506/320 | 8500 | 10 |
| 100 | 5 | 6 | - | RLG10056/60 | RLG10056/80 | RLG10056/120 | - | - | - | 6800 | 10 |

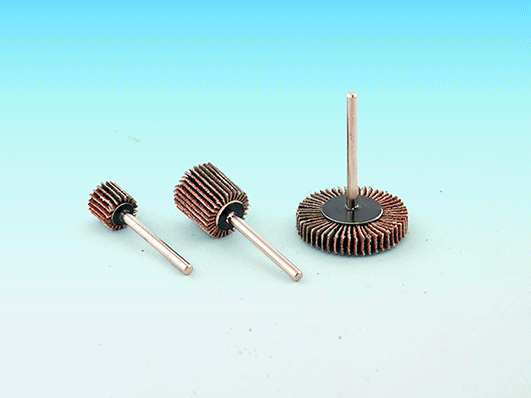

De lamellenschuurwielen of schuurmoppen, worden hoofdzakelijk ingezet voor het schuren en afwerken van kleine oppervlakken of al dan niet moeilijk toegankelijke oppervlakken. Te gebruiken op materialen als staal, roestvast staal en non ferro metalen.
De spanstift mag niet meer dan 5mm uit het inspangereedschap steken.

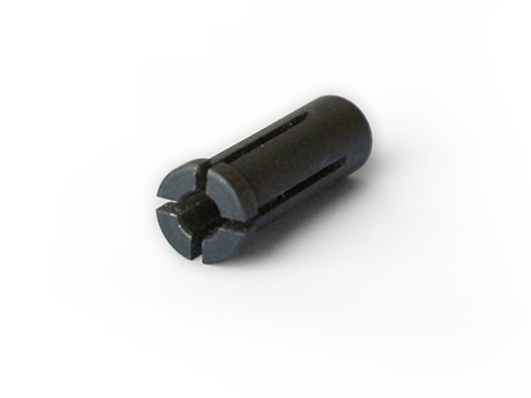

Adapter voor 6mm naar 3mm
artikel nr. ADR
| Ø | H | S | korrelgrofte | max rpm | vpe | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| [mm] | 40 | 60 | 80 | 120 | 180 | 240 | 320 | ||||
| 10 | 10 | 3 | - | RL10103/60 | RL0103/80 | RL10103/120 | RL10103/180 | RL10103/240 | RL10103/320 | 26000 | 25 |
| 15 | 10 | 3 | - | RL15103/60 | RL15103/80 | RL15103/120 | RL15103/180 | RL15103/240 | - | 26000 | 25 |
| 15 | 15 | 3 | - | RL15153/60 | RL15153/80 | RL15153/120 | RL15153/180 | RL15153/240 | - | 26000 | 25 |
| 15 | 20 | 3 | - | RL15203/60 | RL15203/80 | RL15203/120 | RL15203/180 | - | - | 26000 | 25 |
| 20 | 10 | 3 | - | RL20103/60 | RL20103/80 | RL20103/120 | - | - | - | 26000 | 25 |
| 20 | 15 | 3 | RL20153/40 | RL20153/60 | RL20153/80 | RL20153/120 | - | - | - | 26000 | 25 |
| 30 | 5 | 3 | - | RL3053/60 | RL3053/80 | RL3053/120 | - | RL3053/240 | - | 25000 | 25 |
| 30 | 10 | 3 | - | RL30103/60 | RL30103/80 | RL30103/120 | RL30103/180 | RL30103/240 | - | 25000 | 25 |
De lamellenschuurwielen met een zirkonium korrel , worden hoofdzakelijk ingezet voor het schuren en afwerken van kleine oppervlakken of al dan niet moeilijk toegankelijke oppervlakken. Zeer geschikt voor gebruik op roestvast staal.
De spanstift mag niet meer dan 5mm uit het inspangereedschap steken.
| Ø | H | S | korrelgrofte | max rpm |
vpe | ||
|---|---|---|---|---|---|---|---|
| [mm] | 40 | 60 | 80 | ||||
| 20 | 15 | 6 | RLGZ20156/40 | RLGZ20156/60 | RLGZ20156/80 | 26000 | 25 |
| 30 | 15 | 6 | RLGZ30156/40 | RLGZ30156/60 | RLGZ30156/80 | 25000 | 25 |
| 30 | 20 | 6 | RLGZ30206/40 | RLGZ30206/60 | RLGZ30206/80 | 25000 | 25 |
| 40 | 20 | 6 | RLGZ40206/40 | RLGZ40206/60 | RLGZ40206/80 | 19000 | 25 |
| 50 | 20 | 6 | RLGZ50206/40 | RLGZ50206/60 | RLGZ50206/80 | 15000 | 25 |
| 50 | 30 | 6 | RLGZ50306/40 | RLGZ50306/60 | RLGZ50306/80 | 15000 | 25 |
| 60 | 30 | 6 | RLGZ60306/40 | RLGZ60306/60 | RLGZ60306/80 | 12700 | 25 |
| 80 | 30 | 6 | RLGZ80306/40 | RLGZ80306/60 | RLGZ80306/80 | 8500 | 25 |

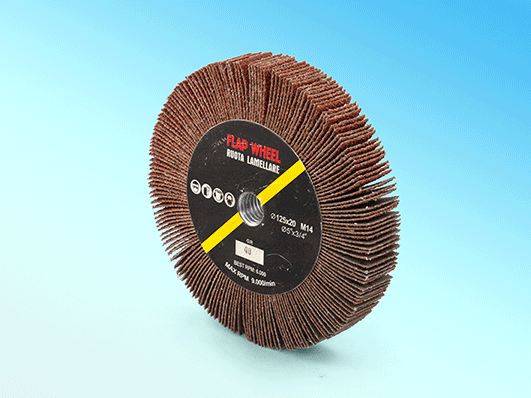

Deze lamellenwielen kunnen op een toeren geregelde haakse slijper worden gemonteerd met een M14 aansluiting. Geschikt voor het verwijderen van lasnaden op ronde en onregelmatig gevormde stalen oppervlakken.
| Afmetingen | korrelgrofte | max rpm |
vpe | ||||
|---|---|---|---|---|---|---|---|
| [mm] | 40 | 60 | 80 | 120 | 240 | ||
| Ø115x20xM14 | RLB115/40 | RLB115/60 | RLB115/80 | RLB115/120 | RLB115/240 | 9000 | 5 |
| Ø125x20xM14 | RLB125/40 | RLB125/60 | RLB125/80 | RLB125/120 | RLB125/240 | 9000 | 5 |
| Ø150x20xM14 | RLB150/40 | RLB150/60 | RLB150/80 | RLB150/120 | RLB150/240 | 7000 | 5 |
